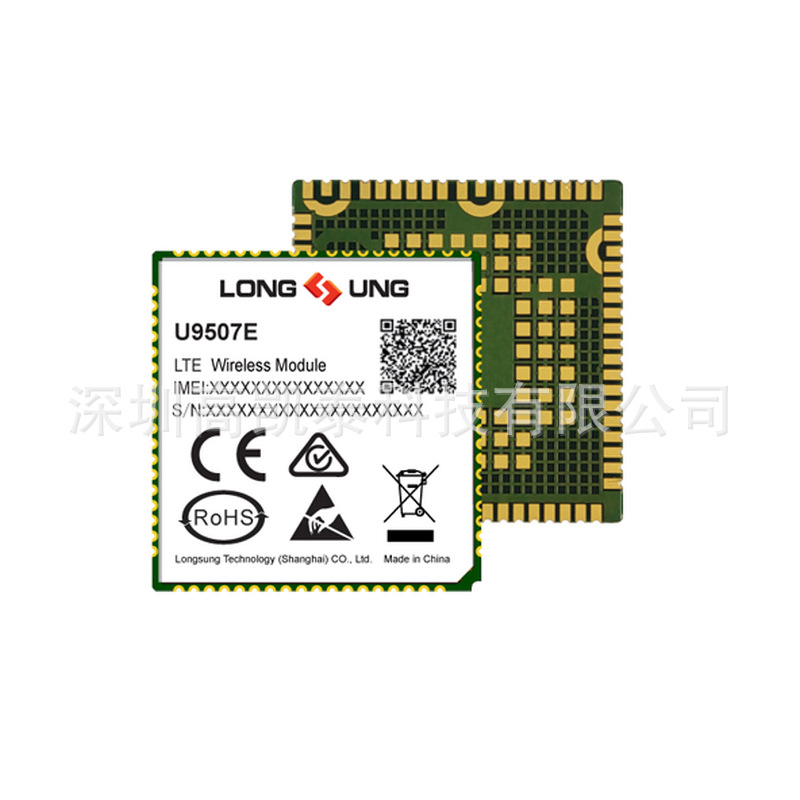

產品描述：龍尚 U9507E手機通訊模塊 寬帶

• U9507E是新一代Longsung LTE無線模塊，具有豐富的互聯網協議和標準 接口和豐富的功能。它可以被設計成多種可以工作的應用 在LTE-FDD/LTE-TDD/UMTS/GSM/GPS/GLONASS(可選)網絡上。

• 在LTE網絡上，U9507E能夠以高達150Mbps的下行數據速率和UL數據速率連接到互聯網 速度高達50Mbps，在LTE服務不可用的地區，U9507E仍然能夠?qū)崿F(xiàn)可靠的 通過3G(UMTS)或2G(GSM)網絡安全連接數據。

• U9507E提供SMS、MMS、電話簿功能以及高速訪問和音頻 功能。它可以被設計成多種應用。例如數據卡、平板電腦、電zi書、MID， 車輛設備等

General features:龍尚 U9507E手機通訊模塊 寬帶
• EDGE multi-slot class 33
• GPRS multi-slot class 33
• Compliant to GSM phase 2/2+
• Output power:
- Class 3 (0.25W) for LTE/UMTS     - Class 4 (2 W) for GSM 900    - Class 1 (1 W) for GSM 1800
• Control via AT commands: (3GPP TS27.005/TS27.007, 3GPP2 )
• Supply voltage range: 3.3V- 4.2V
• Low Power consumption:  - Sleep mode: 3mA   - Power down: 16 μA
• Dimensions: 31.0×30.0×2.4mm
• Operation Temperature  :-40°C to +85°C
•MSL：3

Band Configuration:
U9507E:
• LTE-FDD Band 1/3/5/7/8/20/28
• LTE-TDD Band 38/40
• UMTS Band 1/5/8
• GSM Band 3/8

Specifications for data:
• Support Release 11 Category 4
• LTE-FDD up to 150 Mbps DL,50 Mbps UL
• LTE-TDD up to 130 Mbps DL,35 Mbps UL
• DC-HSPA+ up to 42.2Mbps DL,5.76Mbps UL
• EDGE class 33: 296Kbps DL,236.8Kbps UL
• GPRS class 33: 107kbps DL,85.6kbps UL
• CSD up to 14.4 kbps
• Non transparent mode
• PBCCH support
• PPP-stack
• Coding schemes CS 1,2,3,4
• FOTA
• TCP/IP
• NDIS

GNSS:
• GPS frequency: 1575.42MHz
• At least support 44 channels
• Sensitivity:

- Acquisition: -158dBm

- Tracking: -162dBm
• TTFF:

- Cold Start: 28s

- Warm Start: 18s

- Hot Start: 1s

Additional features:
• VoLTE
• Phone book
• PCM
• DTMF

Specifications for SMS:
• Point-to-point MO and MT
• SMS cell broadcast
• Text and PDU mode

Protocols:
TCP/ UDP/ PPP/ FTP/ HTTP/ HTTPS/SMTP*/ SMTPS*/ MMS/ FTPS*/ NTP/PING/ QMI/ SSL/ NITZ/ CMUX/ MQTT*

Approvals:
• RoHS / CE / GCF / RCM / NCC

Interfaces:
• RF connector
• PCI Express® Mini Card Interface
- Power supply

- USB 2.0 high speed

- UICC/SIM/UIM card interface 3 V, 1.8 V

- UART

- Analog Audio

- PCM
• Antenna connector
