特性

1.   100 mV/g sensitivity

2.   50g range

3.   1 to 5,000 Hz frequency range (±5%)

4.   2-pin axial connector

5.   1/4-28 tapped hole

6.   120 grams

7.   Stainless steel

8.   Hermetic

9.   Case isolated

10.  Internal Faraday shield

11.  Available with water and oil resistant environmental boot

12.  IEPE

應用

1.   Industrial vibration monitoring

  工業振動監測

2.   Walkabout data collection

  徒步旅行數據收集

3.   General purpose vibration monitoring

  一般用途監測

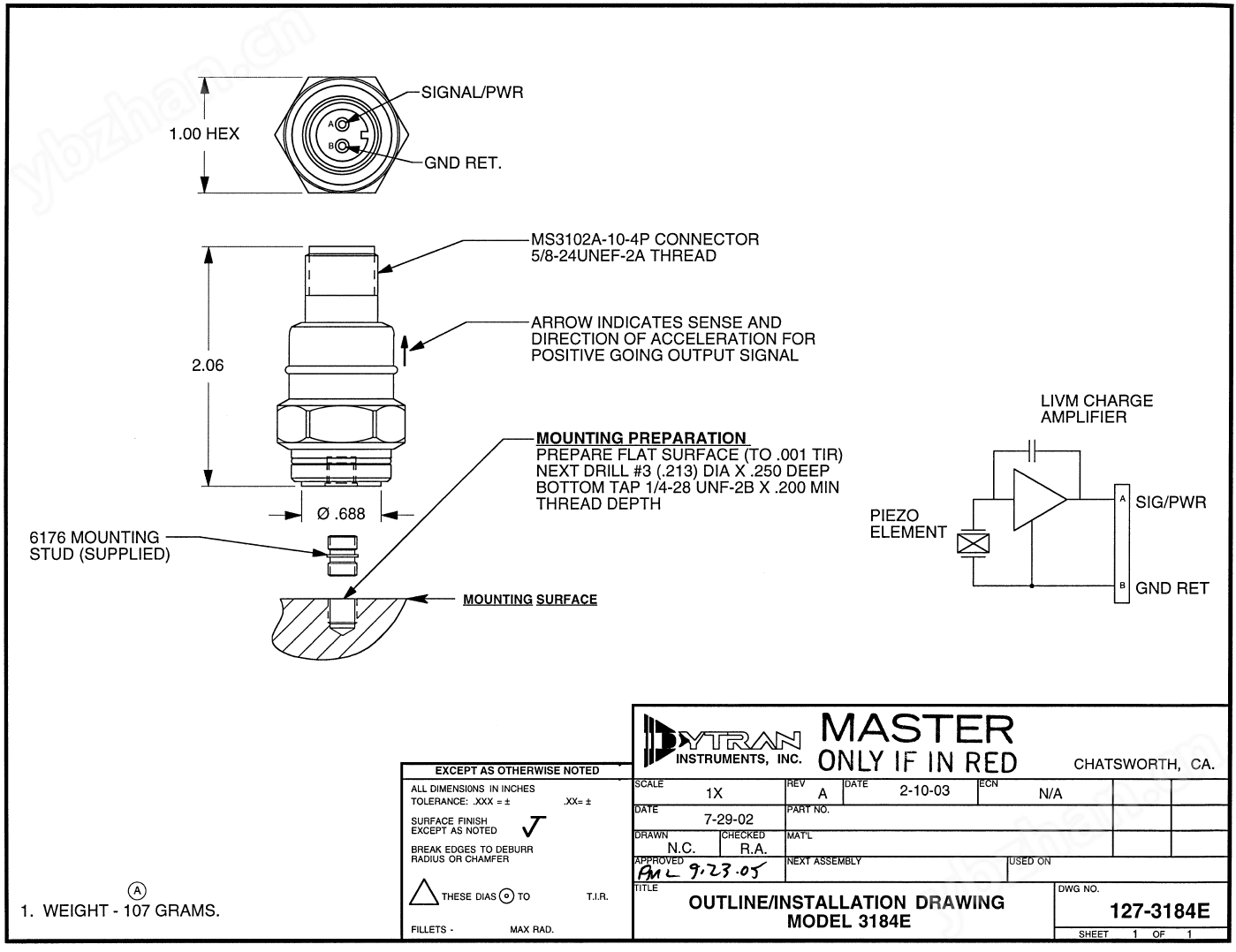

WEIGHT 107 GRAMS

SIZE (HEX x HEIGHT) 1.0 x 2.4 INCHES

MOUNTING PROVISION 1/4-28, UNF-2B TAPPED HOLE AT BOTTOM

CONNECTOR, COAXIAL, TOP MOUNTED 2-PIN MILITARY 10SL-4P

CASE /CONNECTOR MATERIAL 316L STAINLESS STEEL

ELEMENT STYLE CERAMIC SHEAR

PERFORMANCE

SENSITIVITY +/- 5% 100 mV/G

RANGE F.S. FOR +/- 5 VOLTS OUT ± 50 G's

FREQUENCY RESPONSE, ± 5% 0.4 (24) to 5,000 (300,000) Hz (CPM)

FREQUENCY RESPONSE, ± 3db 0.15 (9) to 10,000 (600,000) Hz (CPM)

MOUNTED RESONANT FREQUENCY, NOM. 25 kHz

EQUIVALENT ELECTRICAL NOISE (RESOLUTION) .00002 G, RMS

AMPLITUDE NON-LINEARITY (ZERO BASED BEST FIT ST.LINE METHOD) 2.0 % F.S., MAX.

TRANSVERSE SENSITIVITY, MAX. 5 PERCENT

STRAIN SENSITIVITY .0001 G's PER MICROSTRAIN @ 250/??

ENVIRONMENTAL

MAXIMUM VIBRATION 100 G's, RMS

MAXIMUM SHOCK 3000 G's PEAK

TEMPERATURE RANGE -60 TO +250 oF

ENVIRONMENTAL SEAL HERMETIC

ELECTRICAL

EXCITATION (COMPLIANCE) VOLTAGE RANGE +20 to +30 VDC

EXCITATION CURRENT RANGE 2 to 20 mA

OUTPUT IMPEDANCE, NOM. 100 OHMS

OUTPUT BIAS VOLTAGE 11.5 to 13 VDC

DISCHARGE TIME CONSTANT, MIN. 0.9 TO 2.0 SEC.

OUTPUT SIGNAL POLARITY FOR ACCELERATION TOWARD TOP POSITIVE-GOING

訂貨型號

3184E

配件

1.   Model 6176 mounting stud (1/4-28 to 1/4-28)

2.   Model 4110C current source power unit, model 6186 adhesive mounting base, model 6187 magnetic mounting base, model 6190 magnetic mounting base, model 6194 protective boot

3.   電纜：6038A, 6080A, 6082A, 6406A, 6407A, 6459A

相關型號

3185D

3187D
