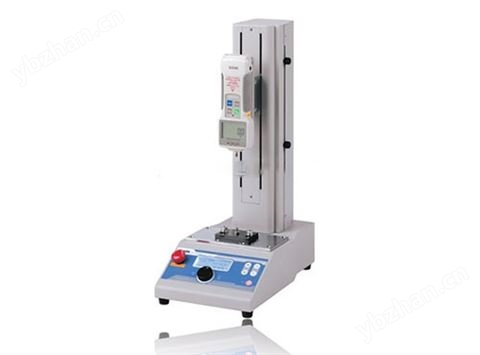

立式電動支架 MX2

詳細介紹

名稱：立式電動支架 MX2

Feature

- Achieves high repeatability with constant testing speed and position
- Easy digital setting of testing modes and speed
- Offers useful functions operated together with force gauge
- Selectable options available to meet your measurement requirements

Specifications for Motorized Test Stａnd MX2 series

Model	MX2-500N	MX2-1000N	MX2-2500N
Capacity	500N (50kgf)	1000N (100kgf)	2500N (250kgf)
Max. height of a sample (*1)	Approx. 235mm	Approx. 300mm	Approx. 320mm
Deflection at maximum load	[Standard models] less than 0.5mm [Long stroke (optional)] less than 1.0mm
Test speed	10 to 300mm/min
Measuring Modes	Manual mode, JOG mode, Cycle mode
Functions	Counter (number of tests to repeat): Max. 65535 times Timer (pausing time): Up to 99 min 59 sec 9 (by 0.1 sec)
Control	Emergency stop, force control (2), overload prevention (2, *3)
Operating temperature humidity	0 to +40 degree Celsius 35 to 70% (avoid condensation)
Power	AC100 to 240V, 50/60Hz (Selectable from 100, 120 and 230V. Accessories are provided accordingly.)
Dimensions	See [Dimensions]
Weight	Approx.18kg	Approx.19kg	Approx.26kg
Available options (4) (5)	Long stroke, external signal input, length scale, inbuilt liner scale, speed range changes
Accessories	Operation manual, power cable, spare fuse, tools
Accessories	GF-1 (Grip mounting adaptor）	GF-2 (Grip mounting adaptor), Mounting plate for high capacity force gauge	GF-2 (Grip mounting adaptor), Mounting plate for standard force gauge
Mountable Force Gauge (*6)	Mechanical Force Gauge: FB, PS, PSM series Digital Force Gauge: DST, DSV, ZTS, ZTA series (up to 1000N) Load cell: DPU series (up to 500N *7)
Mountable Force Gauge (*6)	－	Mechanical Force Gauge: PSH series Digital Force Gauge: ZTS, ZTA series (Over 2500N)

*1 Max. sample height refers to the distance between the table and the tip of force gauge measuring shaft when the head is at the top.
(MX2-500N/MX2-1000N: with up to 1000N model of ZTS/ZTA series mounted.)
(MX2-2500N: With over 2500N model of ZTS/ZTA series mounted.)
*2 ZTS/ZTA series force gauge and optional cable CB-518 are required.
*3 It does not guarantee complete protection against overloading.
*4 Add the option code after the model name to complete the model with options.
e.g. When adding long stroke option to MX2-500N … Model: MX2-500N-L
*5 Capacity is reduced as below by some speed change options.
MX2-500N:-V600 capacity 250N, –V900 capacity 150N MX2-1000N:-V750 capacity 500N, –V1000 capacity 250N
*6 Ensure to use within the capacity of force gauge and test stａnd regardless of the mountable models.
*7 Mounting block (sold separately) is required to mount over 1000N range of DPU to MX2-1000N/MX2-2500N.

For greater precision with high rigidity and usability, top-of-the-range model EMX series are available:
High Functionality Type Motorized Test Stａnd EMX-1000N

For force-displacement measurement, FSA series offer complete unit:
Force-Displacement Measurement Unit FSA series
